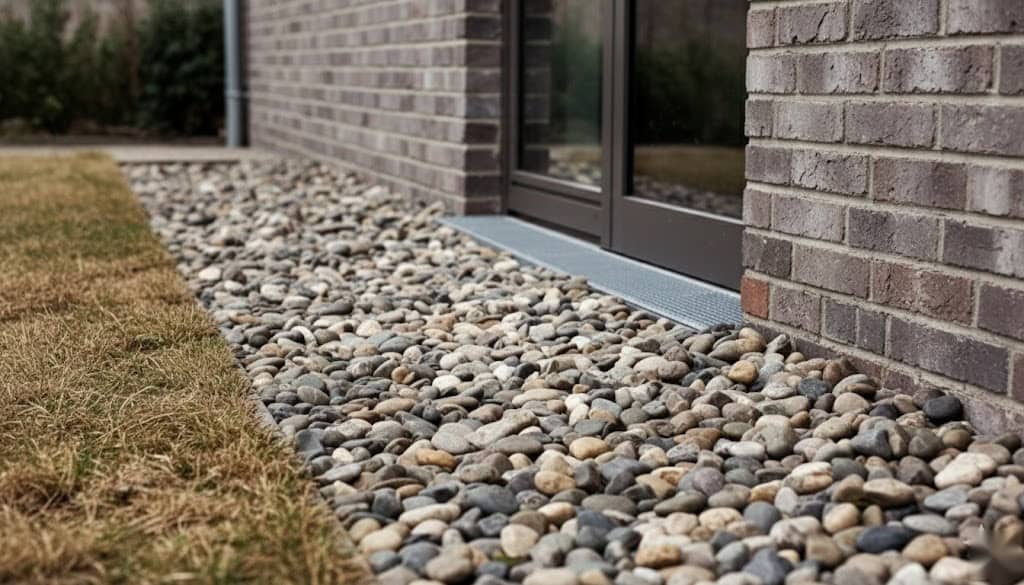

A French drain is a sloping trench lined with geotextile fabric, filled with gravel and fitted with a slotted pipe. Groundwater and surface water soak into the gravel, enter the pipe and run by gravity to a safe outlet, which keeps soggy lawns, retaining walls and footings drier.
This guide covers how a French drain works, what it is called in Australia, the signs your yard needs one and how to build a simple one. It also shows where DIY stops in NSW, the alternatives worth comparing and why these drains fail.
Last reviewed: 8 October 2026
What is a French drain?
It gives water an easier path than your soil does. Rain and groundwater move sideways through the ground until they reach the loose gravel, then drop into the pipe and flow downhill along it.
The idea dates back to an American farmer, Henry Flagg French, who wrote about draining wet fields in the 1850s. Modern versions swap his clay tiles for plastic pipe and add a fabric wrap so silt cannot clog the gravel.
Every French drainage system has the same four parts. Each one has a job, and leaving one out is the most common reason a drain clogs within a few years.
| Part | What it does |
|---|---|
| Sloping trench | Sets the fall so gravity moves the water to the outlet |
| Geotextile fabric | Lets water through but holds back soil and fine silt |
| Drainage gravel | Collects water from the soil around it and protects the pipe |
| Slotted pipe | Carries the collected water quickly along the trench to the outlet |
Typical residential build. Sizes and depths vary with the soil and the problem.
What it is called in Australia
Most Australian plumbers and landscapers call it an ag drain, short for agricultural drain. The slotted pipe is sold as ag pipe or agi pipe, often with a fabric sock already fitted.
Builders and the national building code use the term subsoil drain. The Australian Building Codes Board lists the usual spots for one as behind retaining walls, beside deep footings, next to basement walls and on the uphill side of a cut.
All three names describe the same thing. A strip drain or channel drain is different: it is a grated surface channel that catches water running across paving.
Signs your yard needs one
A French drain suits water that sits in or moves through the soil. These are the signs we see most often on Sydney jobs:

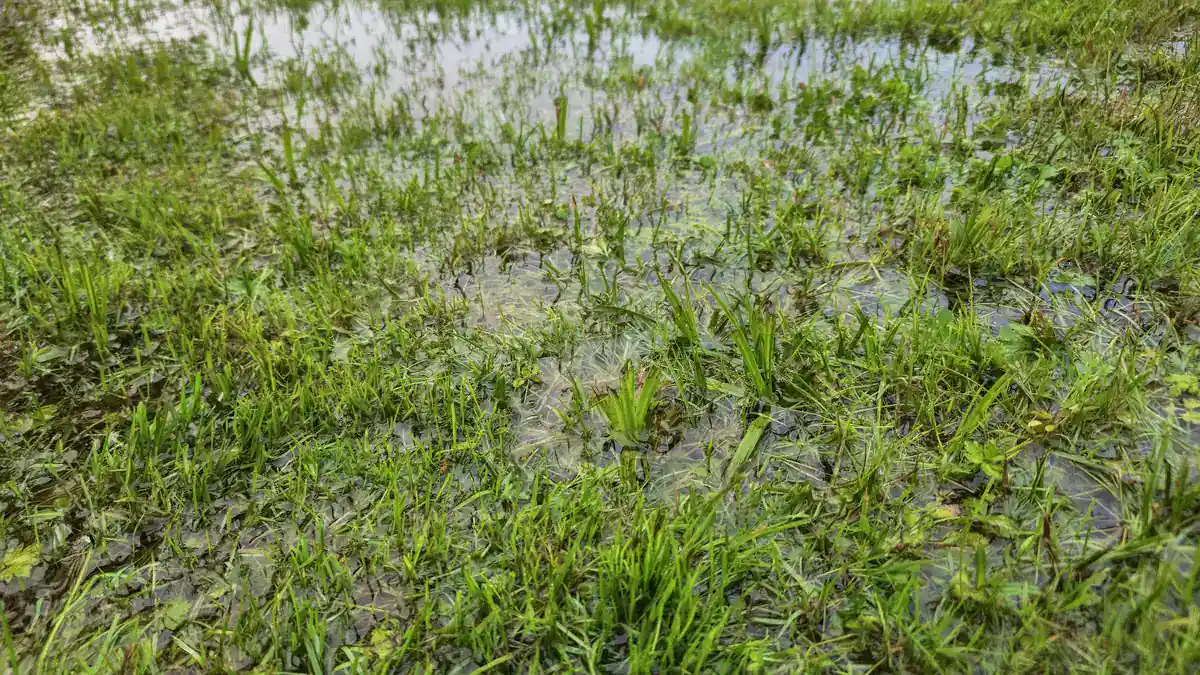

- Lawn that stays soggy or spongy for days after rain
- Puddles that keep forming in the same low spot
- Damp subfloor, musty smells or tide marks on lower walls
- A retaining wall that weeps, bulges or leans
- Garden beds washing out or plants dying from wet roots
- A block that slopes toward the house, so runoff ends up at the back door
Soil type makes a big difference. NSW Government soil mapping puts clay soils with high swelling potential in the slowest-draining group, with very slow infiltration once they are wet.
Much of western and northern Sydney sits on that kind of clay. On sloping blocks in suburbs like Castle Hill, water also runs down through the soil and meets the house on its way past.
Some of these signs can point to a leaking pipe rather than groundwater. If a patch stays wet in dry weather, our guide on checking the water meter for a hidden leak is the better first step.
Can you build a French drain yourself?
A simple French drain in a garden, one that soaks away or daylights on your own land, is mostly digging and gravel work. Many homeowners build that kind themselves, and a landscaper can as well.
The line comes at the pipes. The NSW Government says you need a licence for any plumbing, draining or gasfitting work, so connecting into stormwater pipes, a pit or the kerb outlet is a job for a licensed plumber.
Never run a French drain into a sewer pipe, an overflow gully or a floor waste. Groundwater and stormwater must stay out of the sewer, and the rule applies to every Sydney home.
| Job | Who should do it |
|---|---|
| Garden drain that soaks away on your land | Homeowner or landscaper, after a services check |
| Flushing and clearing a cleanout | Homeowner |
| Connecting to stormwater pipes, a pit or the kerb | Licensed plumber |
| Drainage behind a retaining wall over 600 mm | Builder or engineer, with the plumber on the outlet |
| Anything near the sewer line or a gully | Licensed plumber |
Source: NSW Government licensing rules and Sydney Water connection rules.
How to build a French drain
These steps suit a garden drain that discharges on your own property. Plan the whole run before you dig, because the outlet decides the depth and fall of everything upstream.
- Walk the yard in heavy rain and note where water sits and where it comes from.
- Pick an outlet lower than the wet area and well clear of the house and the boundary.
- Get free plans of buried services for the route and mark them before digging.
- Dig the trench about 30 cm wide and 50 to 60 cm deep, deeper in heavy clay.
- Set a steady fall of about 1 cm for every metre and check it with a level as you go.
- Line the trench with geotextile fabric, leaving enough overhang to wrap over the top.

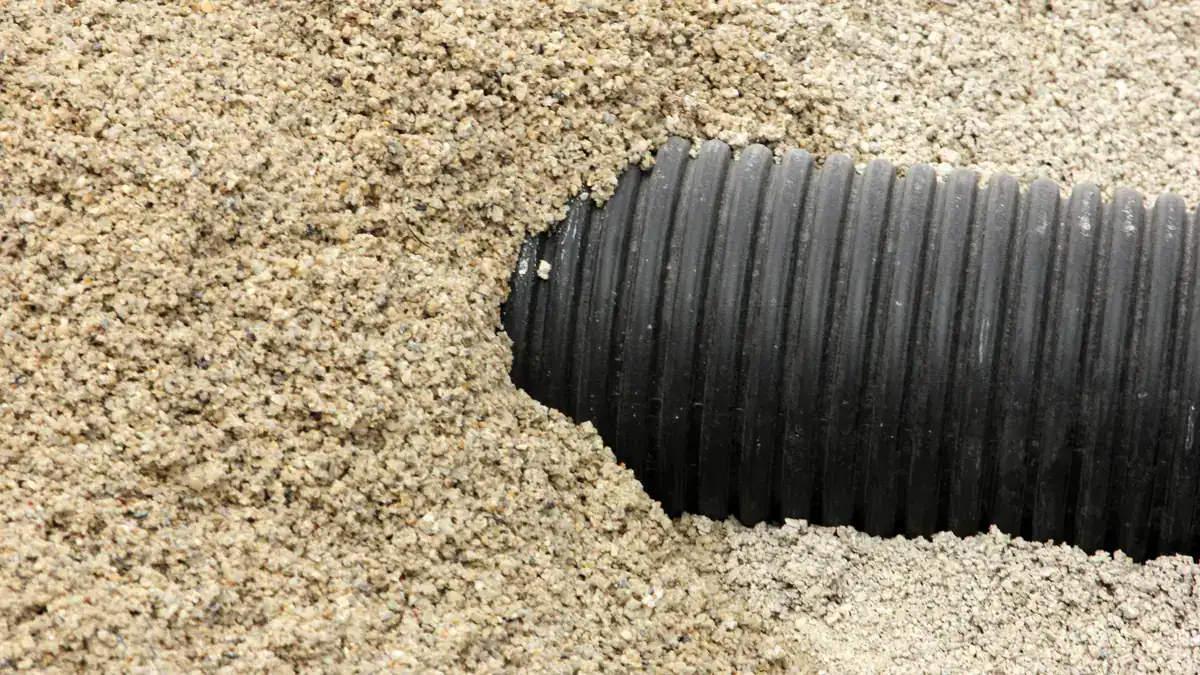

- Lay 5 to 10 cm of clean 10 to 20 mm drainage gravel, then the slotted pipe on top.
- Cover the pipe with more gravel, fold the fabric over and finish with gravel, turf or soil.
For step 3, Before You Dig Australia provides plans of underground services at no charge. Gas, power, water and telecommunications lines often run through front and side yards, so this check is worth the short wait.
A pipe with a fabric sock suits sandy or silty soil, while open slotted pipe inside a fabric-lined trench suits clay. If your pipe has slots on one side only, lay them facing down so water rises into the pipe.
A flat trench is the mistake we see most. Water sits in any low spot, silt settles there and the drain slowly stops working from the bottom up.
Where the water goes
A French drain only moves water, so the outlet matters as much as the trench. On your own land the usual choices are a lower part of the yard, a rain garden or a soakwell in soil that drains well.
Councils expect you to manage your own groundwater without passing the problem on. Inner West Council, for example, says seepage water is the owner’s responsibility and any diversion must not harm properties further down the slope.
If the drain needs to reach the stormwater system, a plumber connects it through a pit with a silt trap. Our guide to installing a stormwater pit at home shows how those pits work.

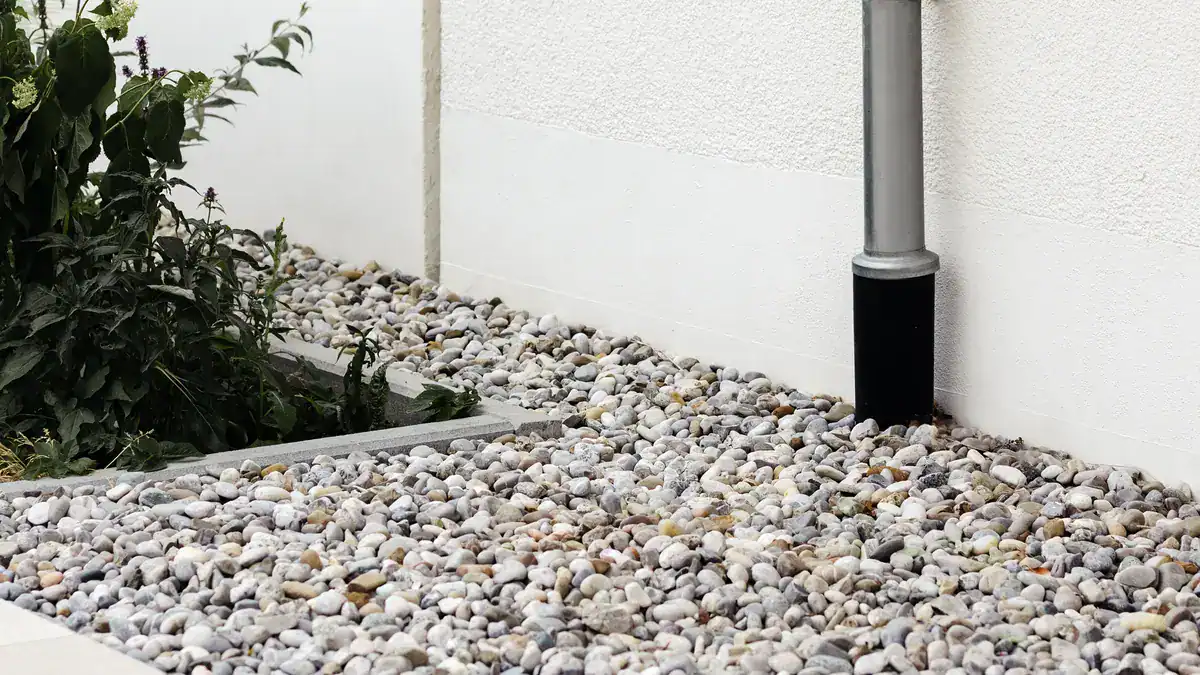

Roof water follows its own rules in NSW. Our guide to connecting downpipes to stormwater explains where downpipes must discharge.
French drains behind retaining walls
Water trapped behind a retaining wall pushes against it, and that pressure is a common reason walls crack, bulge or lean. A French drain at the base of the wall, behind it, lets the water escape before it builds up.
Use coarse gravel behind the wall and run the pipe to an outlet at the end of the wall. The building code asks for a uniform fall of at least 1 in 300 on subsoil drains near buildings, and more fall clears silt better.
We see this a lot on the steep blocks around Engadine and the rest of the Sutherland Shire. Tiered gardens there often hold back wet clay with walls that were built without any drainage behind them.
A wall that is already moving needs more than a drain. Have a builder or engineer look at it first, because a new drain cannot straighten a failing wall.
Do you need council approval?
A small garden drain on your own land usually does not need approval. The picture changes when the work involves earthworks, a retaining wall, a heritage area or a connection to council drainage.
The NSW Planning Portal says exempt earthworks and retaining walls must not redirect surface or ground water onto an adjoining property. Check with your council before you start if any of those apply.
Responsibility for the pipes changes at the boundary too. Our guide on who looks after stormwater drains in NSW sets out which parts are yours.
French drain vs other options
This kind of drain is not the answer to every wet yard. The right fix depends on whether the water is soaking through the soil, running across a hard surface or falling off the roof.
| Problem | Usually the better fix |
|---|---|
| Soggy lawn, wet soil against walls | French drain (ag drain) |
| Water sheeting across a driveway or patio | Strip drain (grated channel) to a pit |
| Downpipe dumping water in one spot | Connect the downpipe to stormwater, or a soakwell where allowed |
| Yard falls toward the house | Regrade the surface, often with a French drain along the uphill side |
| Water pooling at an existing pit or grate | Clear or repair the existing drain first |
General guide. A site visit shows where the water actually comes from.
Often the answer is a mix. A strip drain can catch water at the driveway while a French drain dries the lawn beside it, both feeding the same outlet.
Downsides and limits
French drains are simple, but they have trade-offs worth knowing before you dig. The main ones are below.
- They need a lower outlet, so a dead-flat block may have nowhere for the water to go.
- Digging a long trench by hand in clay is heavy, slow work.
- Silt and tree roots can clog them over time, and a buried pipe is hard to inspect.
- They do little for water running across hard surfaces, which needs a grated drain.
- Poorly placed outlets can move the problem onto a neighbour’s land.
Why French drains fail
When we dig up a French drain that has stopped working, the cause is usually one of a few things. The pipe has no fall, the fabric was left out and silt has filled the gravel, or the outlet is buried or blocked.
Roots are the other big one. Trees and shrubs send roots toward any steady moisture, and they can fill a slotted pipe within a few seasons.
Most of this is preventable with a little care. Keep the outlet clear, rake leaves off gravel-topped drains and flush the pipe from a cleanout point once or twice a year.
If flushing does not help, the blockage is probably deeper in the line. Our guide on clearing an outside drain covers the safe first checks.
A plumber can then run a drain camera inspection to find the blockage. Jetting usually clears silt and roots without digging the drain up.
Frequently asked questions
Can I do a French drain myself?
Yes, a garden drain that soaks away on your own land is usually DIY work. Connections to stormwater pipes, pits or the kerb need a licensed plumber in NSW.
How long will a French drain last?
A well-built drain with fabric, clean gravel and a good fall can work for many years. Silt, roots and a blocked outlet shorten that, so regular flushing matters more than the pipe brand.
What can I do instead of a French drain?
Regrading the yard, a grated strip drain, a soakwell or connecting downpipes properly can each solve a different kind of wet yard. The comparison table above matches each one to the problem it suits.
Can a French drain run into the sewer?
No. Sydney Water says rainwater and stormwater must not enter your wastewater system, so the drain goes to a stormwater outlet or soaks away on your land.
How deep should a French drain be?
For a garden, about 50 to 60 cm is typical, going deeper in heavy clay or beside footings. The fall along the trench matters more than the exact depth.
Does a French drain need a pipe?
A gravel-only trench works for small areas but clogs sooner and carries less water. A slotted pipe moves water faster and gives you a way to flush the drain later.
When to call a plumber
Call a plumber when the drain needs to connect into stormwater, when water keeps coming back after a French drain is in, or when you are not sure where the water is coming from. Our drainage solutions team can find the source, design the run and handle the licensed connection.
A wet yard is a common problem in Sydney, and most have a clear fix once the water’s path is understood. Getting the outlet and the fall right from the start saves digging the drain up later.
This guide is general information. Plumbing, drainage and gas work in NSW must be done by a licensed tradesperson.
